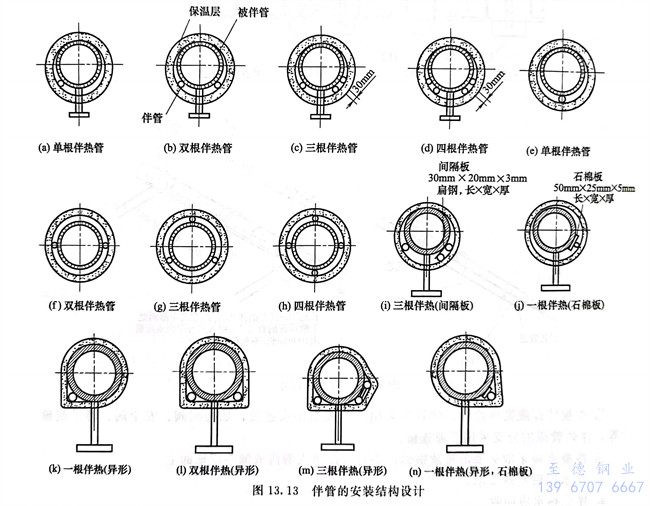

伴(ban)(ban)熱管(guan)安裝(zhuang)結構(gou)設(she)計如圖(tu)(tu)(tu)13.13（a）～（d）所(suo)示(shi)(shi)，在(zai)水平管(guan)線時應(ying)安裝(zhuang)在(zai)被伴(ban)(ban)管(guan)下(xia)方一側或兩側。如圖(tu)(tu)(tu)13.13（e）～（h）所(suo)示(shi)(shi)，布置在(zai)垂直管(guan)時應(ying)均勻敷設(she)。圖(tu)(tu)(tu)13.13（i）、（j）所(suo)示(shi)(shi)為(wei)加間隔(ge)板(ban)或石棉(mian)(mian)墊(dian)(dian)的設(she)計。圖(tu)(tu)(tu)13.13（k）～（n）為(wei)異形(xing)(xing)隔(ge)熱層(ceng)（非圓形(xing)(xing)隔(ge)熱層(ceng)），其中(zhong)圖(tu)(tu)(tu)13.13（n）所(suo)示(shi)(shi)為(wei)異形(xing)(xing)隔(ge)熱層(ceng)加石棉(mian)(mian)墊(dian)(dian)。
