某工程配(pei)(pei)管(guan)(guan)(guan)(guan)設(she)計時，由3D軟(ruan)(ruan)件(jian)商(shang)開(kai)發了軟(ruan)(ruan)件(jian)插件(jian)，使軟(ruan)(ruan)件(jian)內(nei)的(de)管(guan)(guan)(guan)(guan)子顯(xian)示了管(guan)(guan)(guan)(guan)道焊縫(feng)的(de)位(wei)置，在三維軟(ruan)(ruan)件(jian)配(pei)(pei)管(guan)(guan)(guan)(guan)設(she)計模型內(nei)自(zi)(zi)動顯(xian)示了焊縫(feng)區域(yu)，軟(ruan)(ruan)件(jian)可自(zi)(zi)動檢測焊縫(feng)區域(yu)與結構、管(guan)(guan)(guan)(guan)架(jia)等設(she)施沖突的(de)位(wei)置，實現了配(pei)(pei)管(guan)(guan)(guan)(guan)設(she)計更高效的(de)精細化、本質安全(quan)和自(zi)(zi)動化，見圖2.72。

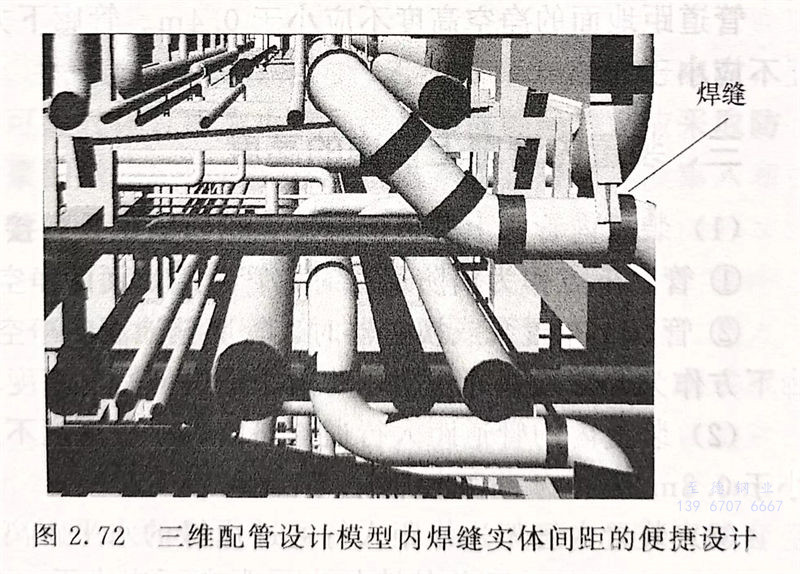

 圖2.72 三維(wei)配管(guan)設計模(mo)型內焊(han)縫實(shi)體間距的便捷設計
